Product Description
We offer a wide range of colored acrylic sheets. Standard tinted colors including white, black, opal, red, green, yellow, ivory, brown, orange, blue and fluorescent acrylic sheets(pls refer to our color chains). Typically used for signs and lighting applications, these acrylic sheets can be translucent and opaque, translucent colors can transmit light when backlit. As the acrylic sheet increases in thickness, the amount of light passed through decreases.
Sign-color acrylic sheet is available from 1.8-30mm(1/16” -1” )thick and comes in standard sizes. Color sheet is suitable for small quantity processing, there are unmatched flexibility in color and surface texture, and complete product specifications for a variety of special purposes.

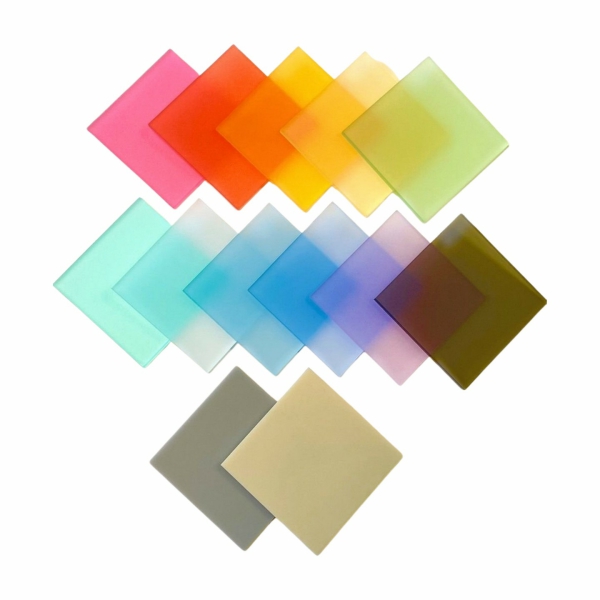

Color Option
The color card is partially displayed, and the color can be customized as needed.
Application
Construction: show window, doors, light-absorpting shade, telephone booth, partition board in office
and house;Advertisement: lamphouse,signboard,indicator,display rack ;Transportation: door and
window of car and train or others; Medical: infant incubator, many kinds of medical apparatus; Civilian
goods: bath room, art work, cosmetics, bracket, desk, chair, kitchen, the aquarium and sanitary applica-
tion;Industrial: instruments and insulation material meters and protecting cover, photics and other
industry;Lighting: daylight lamp, ceiling, lamp, lamp-chimney, Light diffusion;Product design;engrav-
ing, making gift items, stationery rack, mining mask.
Technical parameters:
Cast acryilic sheet | Net size /mm | Thickness rangeVymm: 1.5-300 | |||
1000*2000 | 1200*1800 | 1220*2440 | 122x*1830 | 1250*18250 | 1270*1870 |
1220*2440 | 1220*2450 | 1240*2460 | 1280*2500 | 1290*2510 | 1300*2500 |
1320*2540 | 1500*3000 | 1560*2580 | 1830*2440 | 2000*3000 | 2050*3050 |
2580*2600 | |||||
Frosted acryiic sheet | Net size /mm | Thickness rangeVymm: 2.2-20 | |||
1200*2440 | 2000*3000 | ||||
Extrude Acrylic sheet | Net size /mm | Thickness rangeVymm: 0.8-20 | |||
1220*1830 | 1220*2440 | 2000*3000 | 2050*3050 | ||
Mirror Acrylic sheet | Net size /mm | Thickness rangeVymm: 0.8-6 | |||
1000*2000 | 1220*1830 | 1220*2440 | |||
Glitte/Marble Acrylic sheet | Net size /mm | Thickness rangeVymm: 2.3-30 | |||
580*1520 | 940*1540 | 960*1560 | 1200*1820 | 1220*2040 | 1220*2440 |
Technical Properties
Rockwell Hardness | M-100 |
Shear Strength | 630Kg/cm2 |
Tensile Strength | 760Kg/cm2 |
Yield Strength | 1260Kg/cm2 |
Rupture Strength | 1050Kg/cm2 |
Light Transmittance | 94% |
Refractive Index | 1.49 |
Heat Distortion Temperature | 100℃ |
Thermal Forming Temperature | 140℃-180℃ |
Coefficient of linear Thermal Expansion | 6×10-5cm/cm/℃ |
Dielectric Strength | 20Kv/mm |
Water(24HRS)Absorption | 0.30% |
Why Choose Us:
Material | 100% New Virgin Raw Material |
Thickness | 1.8, 2, 3, 4, 5, 8,10,15,20, 30mm...... |
Color | transparent(clear), white, opal, black, red, green, blue, yellow, etc. OEM color OK |
Standard size | 1220*1830, 1220*2440,1270*2490, 1610*2550, 1440*2940, 1850*2450, 1050*2050,1350*2000,2050*3050,1220*3050 mm |
Certificate | CE, SGS, DE, and ISO 9001:2015 |
MOQ | 50 pieces, can be mixed with colors/sizes/thickness |
Delivery | 15-20 days |
